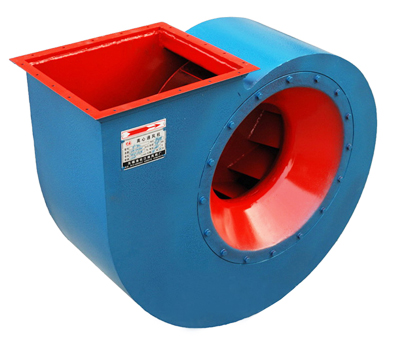

| T4-72 centrifugal fans |
|
|
| |
| They are used for indoor ventilation in common factories and large buildings, delivering air and other gas that are incapable of spontaneous combustion and noncorrosive to steel products and will do no harm to human body. There shall not be stickums in the gas. The content of dust and hard particles shall not be more than 150mg/m3. The temperature of gas shall not exceed 80℃. |
| |
|
No.
|
Rotation Speed (r/min)
|
Power (Kw)
|
Volume Flow (m3/h)
|
Total Pressure (Pa)
|
|
3A
|
2900
|
1.5
|
1588-3049
|
1142-176
|
|
1450
|
0.75
|
794-1524
|
285-179
|
|
3.5A
|
2900
|
3.0
|
2522-4841
|
1556-976
|
|
1450
|
1.1
|
1261-2421
|
388-243
|
|
4A
|
2900
|
5.5
|
3764-7226
|
2036-1275
|
|
1450
|
1.1
|
1882-3613
|
506-318
|
|
4.5A
|
2900
|
7.5
|
5360-10288
|
2582-1616
|
|
1450
|
1.1
|
2680-5144
|
641-402
|
|
5A
|
2900
|
11
|
7352-8318
|
3195-3145
|
|
2900
|
15
|
9284-14113
|
3067-1998
|
|
1450
|
2.2
|
3676-7057
|
792-497
|
|
6A
|
1450
|
4.0
|
6352-12194
|
1142-716
|
|
960
|
1.5
|
4206-8073
|
499-313
|
|
