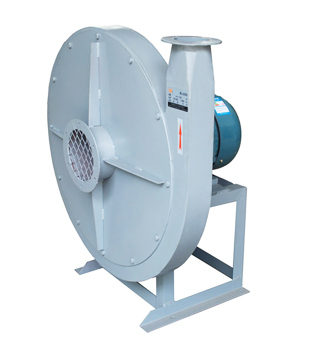

| 7-11 series high pressure centrifugal fans |
|
|
| |
| They are applicable to small flow and high resistance gas delivery system. The impellers of fans are made of light aluminum alloy plate and have undergone strict dynamic balance correction. They are characterized by high pressure, wide range, small volume and being light in weight. They are ideal products by far to be used for fuel-oil atomization, blowing of film developing machine, dividing and cutting machine blowing soft rim charge, and light source cooling. Meanwhile, equipped with an anti-explosion motor, they may be used as anti-explosion fans. |
| |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
|
7-11-1
|
1.5
|
2840
|
460
|
3485
|
|
7-11-2
|
2.2
|
2840
|
545
|
4100
|
|
7-11-3
|
3
|
2860
|
640
|
4775
|
|
7-11-4
|
4
|
2880
|
700
|
5495
|
|
7-11-5
|
5.5
|
2900
|
900
|
6665
|
|
7-11-6
|
7.5
|
2900
|
1228
|
7952
|
|
